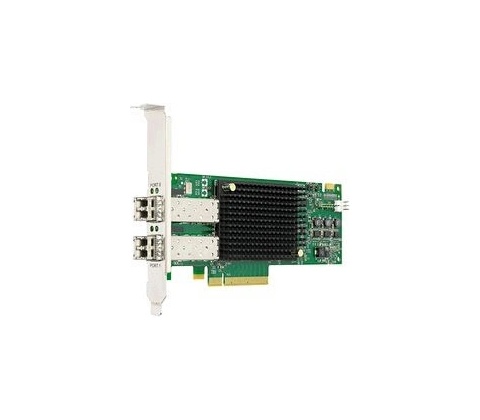

Broadcom LPE31002-AP

BROADCOM LPE31002-AP Gen6 16Gb FC PCIe 2p (LPE31002-AP) ECD Cable Support: 100m at 32Gb on 50/125 µm OM4 MMF, 20m at 32Gb on 50/125 µm OM2 MMF, 70m at 32Gb on 50/125 µm OM3 MMF, Operating at 32Gb OS Support:

Additional support is available from OEMs and partners, Oracle Solaris, SUSE®

• Linux Enterprise Server, VMware vSphere Generation: Gen 6 (32/16GFC) Hardware
• Environment: PowerPC, SPARC, Intel x86, x64 Host Bus Type: PCIe Gen3 x8 Industry
• Standards: Current ANSI/IETF Standards: FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-GS-6,

FC-LS-2, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-5, FCP-4, Fibre Channel class 3, Legacy ANSI/IETF standards: FC-PH, PCIe base spec 3.0, PCIe card electromechanical spec 3.0, PHP hot plug-hot swap, SBC-3, SPC-4,

• SSC-4 I/O Controller: XE501 Operating Humidity: 5% to 95% non-condensing
• Optical Data Rates: 16GFC (14.025 GBaud NRZ), 8GFC (8.5 GBaud NRZ), 4GFC
• (4.25 GBaud NRZ), automatically detected Optics: Short wave lasers with LC type
• connector Fixed optics Ordering Part #: LPe31002-M6 – 2 Port 16GFC Short
• Wave Optical – LC SFP+ Physical Dimensions: Short, low profile PCIe card,

167.64mm x 68.91mm (6.60” x 2.71”), Standard bracket (low profile bracket ships in box) Ports: 2 Regulatory Certifications: Australia(RCM), Japan(VCCI

Class A), China(China RoHS Compliant), Europe(CE Mark, EU RoHS compliant,TUV

Bauart Certified), Korea(MSIP[formerly KCC/MIC]Class A), Taiwan(BSMI Class A)

Whats in the box: low-profile Host Bus Adapter with optic/s, Quantity 1, standard bracket (installed), Quantity 1, low-profile bracket
